600 Commercial Framing

Product Specifications
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 10.38mm
SHGC Range 0.25 - 0.75
Uw Range 4.6 - 6.4
* Subject to individual site conditions and wind loads.
WERS Ratings

About

Series 600 Series Wide Offset 150mm Commercial Framing

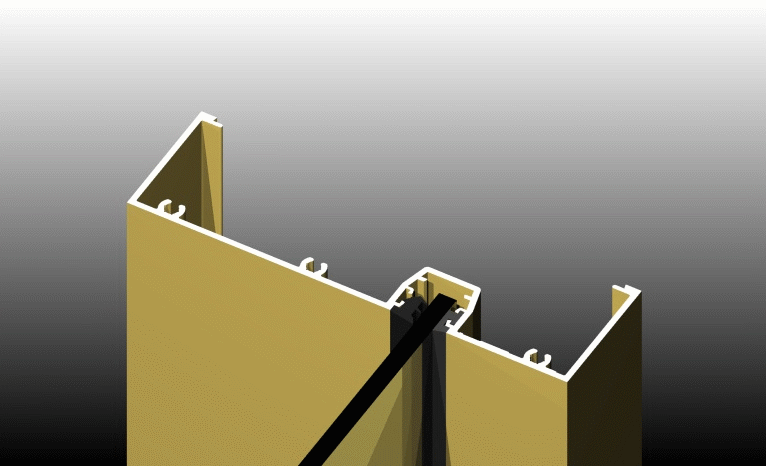

  • Offset 150 x 44mm pocket glazed shopfront framing system designed to complement Series 400 CentreGLAZE™, Series 80 Offset narrow framing and a variety of door systems.
  • Glazing pocket designed to be compatible with industry standard but with the added features of a truly captive glazing wedge option and the ability to screw fix door midrails to framing without having to go through the back of the pocket.
  • The offset matches 400 CentreGLAZE™ allowing us to use CentreGLAZE™ glazing beads, door stops and awning sash inlay adapters.
  • Three 50mm wide door options including fully beaded.
  • Three midrail sizes to choose from (50, 115 and 125mm deep).
  • Two door thresholds cover both internal and external swing hinged doors.
  • Sub-head, sub-sills and two piece sub-jamb to assist with installation.
